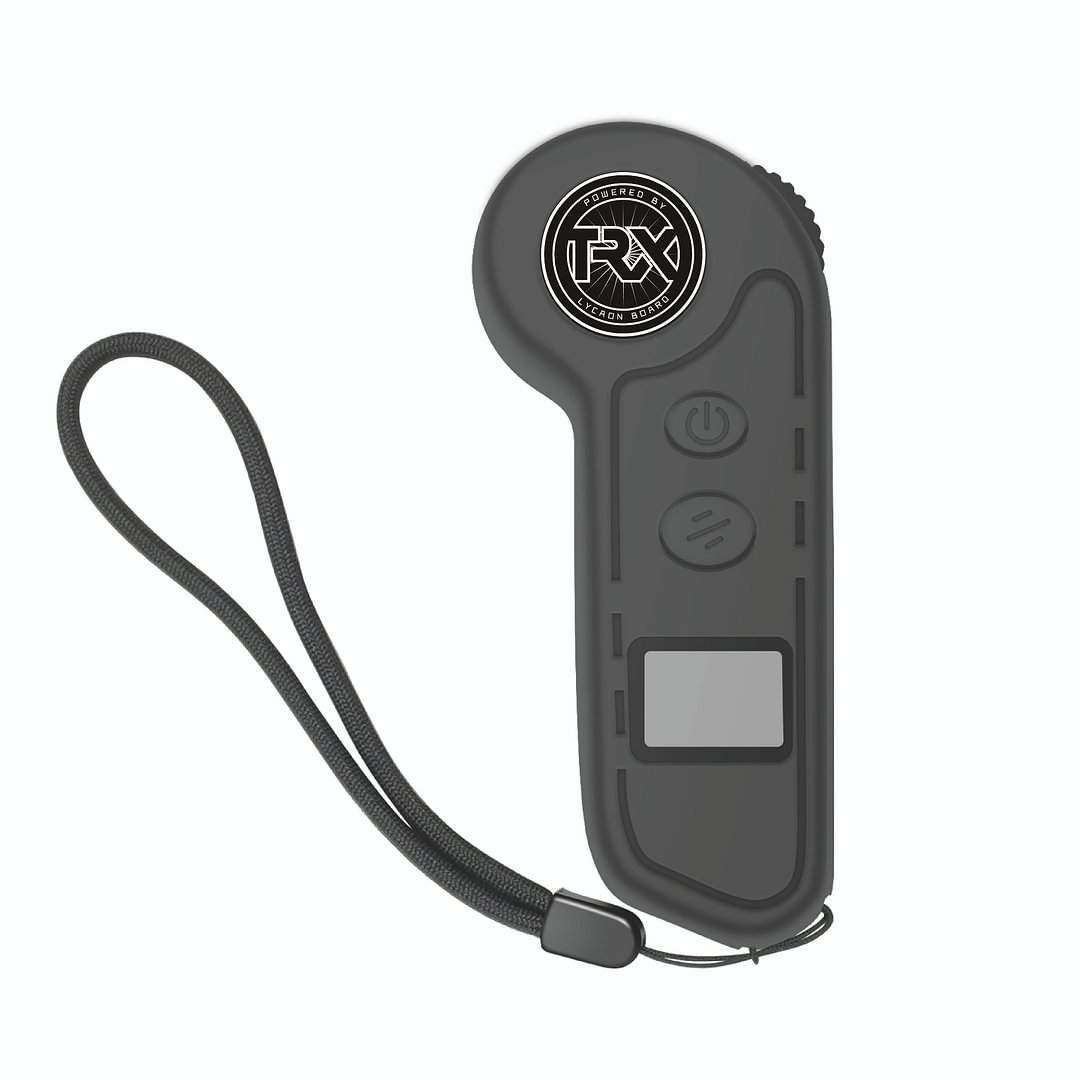

Specs of Lycaon TRX Remote
| Battery Voltage/Capacity |
3.7V/200MAH |
| Charging Port |
USB Type-C |
| Charging Time |
0.5 H |
| Communication Mode |
2.4 G |
| Remote Control Distance |
40m(open area) |
| Weight |
60g |
Remote Settings
| Unit System |
kph km / mph mile |
| Motor Type |
Hub / Belt |
| Wheel Diameter |
90/97/105/115/120/155/175 |
- This setting is available while resetting the remote.
- The speed will be influenced by the parameters you set. Please make sure all the parameters matches in line with the actual conditions.
Remote Sync & Pairing Process
1）How to pair the board and remote
- Hold to the power button of the board and that of the remote at the same time till it displays"PAIRED OK"
- Press the lower button to select options and press the power button to confirm.
- Enter into function interface
2）How to adjust the speed mode -Press the speed mode switch to adjust speed for your riding mode.
Speed Mode: Top Speed in Each Mode
- L (Low): 12 mph/20 kph
- M(Medium): 19 mph/30 kph
- H(High): 24 mph/38 kph
- P(Pro)：28 mph/45 kph ( Instantaneous Acceleration)
3）Brake Intensity changes with speed modes
4）Auto Cruise
- Hold the throttle to accelerate to a certain speed, and press the upper button.
